Product Details:
|
Private Mold: | NO | Products Status: | Stock |
---|---|---|---|
Type: | Rack, Rack | Processor Type: | Xeon, Intel Xeon |
Condition: | New | Memory: | 8GB |
Weight: | 28kg | Form Factor: | 1U |
Processor Main Frequency: | 2.8Ghz | Port: | Tianjin Guangzhou |
Feature | Technical Specifications |
Processor | Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores |
Memory | • 16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s • Supports registered ECC DDR4 DIMMs only |
Storage controllers | • Internal controllers: PERC H345, PERC H745, PERC H755, PERC H755N, HBA355i, S150 • Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSSS1): HWRAID 2 x M.2 SSDs, USB • External PERC (RAID): PERC H840, HBA355e |
Drive bays | Front bays: • 0 drive bay • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB • Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 76.8 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB |
Power Supplies | • 600 W DC/240 V • 600 W Platinum AC/100 - 240 V • 800 W DC/240 V • 800 W Platinum AC/100 - 240 V • 1100 W DC/-48–(-60) V • 1100 W DC/240 V • 1100 W Titanium AC/100 - 240 V • 1400 W DC/240 V • 1400 W Platinum AC/100 - 240 V |

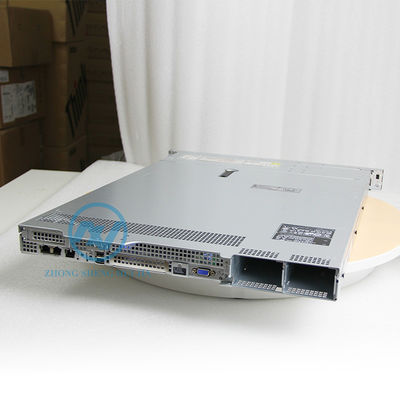

Ports | Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGARear Ports • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x Ethernet • 1 x VGA Internal Ports • 1 x USB 3.0 (optional) |
PCIe | Up to 3 x PCIe Gen4 slots |
