Product Details:
|
Private Mold: | NO | Products Status: | Stock |
---|---|---|---|
Type: | Rack | Processor Main Frequency: | 2.8GHz |
Processor Type: | Intel Xeon Silver 4309Y | Product Name: | PowerEdge R650 Rack Server |
Processor: | Intel Xeon Silver 4309Y | Memory: | 16GB |
Hard Drive: | 1.2TB SAS | Warranty: | 3 Years |
Status: | In Stock | Power Supply: | 800W |
Lead Time: | 1-2 Days | Processor Speed: | 2.8GHz |
Dimensions: | 42.8*482*758.27mm |

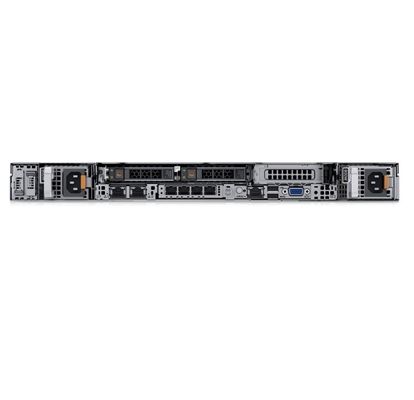

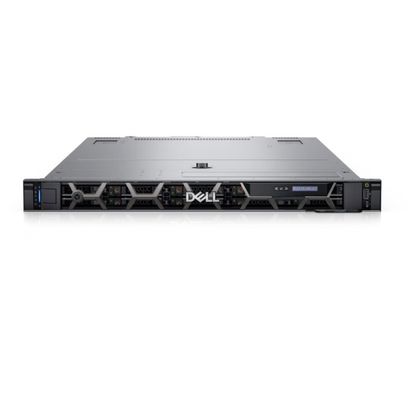

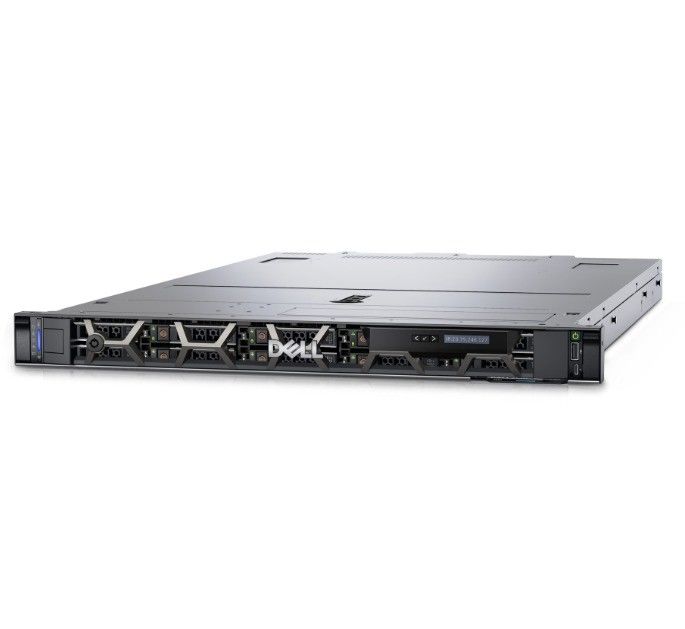

Product Name | Dell PowerEdge R650 Rack Server |
Processor | Intel Xeon Silver 4309Y |
Processor Speed | 2.8GHz |
Memory | 16GB |
Hard Drive | 1.2TB |
Dimensions | 42.8*482*758.27mm |
Power Supply | 800W |
Raid Controller | H755 |
Warranty | 3 years |
Conditions | Brand New |
Lead Time | 1-2 days |
Status | In stock |
Form Factor | 1U Rack Server |
Features | Technical Specifications |
Processor | Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor |
Memory | • 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s • Up to 16 Intel Persistent Memory 200 series (BPS) slots, 12 TB max • Supports registered ECC DDR4 DIMMs only |
Storage Controllers | • Internal controllers: PERC H745, HBA355I, S150, H355, H345, H755, H755N • Boot Optimized Storage Subsystem (BOSS-S1): HW RAID 2 x M.2 SSDs 240 GB or 480 GB • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB • External PERC (RAID): PERC H840, HBA355E |
Drive bays | Front bays: • Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB |
Power Supplies | • 800 W Platinum AC/240 Mixed Mode • 1100 W Titanium AC/240 Mixed Mode • 1400 W Platinum AC/240 Mixed Mode • 1100 W DC -48 - 60 V |
Dimension | • Height – 42.8 mm (1.7 inches) • Width – 482 mm (18.97 inches) • Depth – 758.27 mm (29.85 inches) – without bezel 772.11 mm (30.39 inches) – with bezel |
Form Factor | 1U rack server |
Embedded Management | • iDRAC9 • iDRAC Service Module • iDRAC Direct • Quick Sync 2 wireless module |
Bezel | Optional LCD bezel or security bezel |
Integrations and Connections | OpenManage Integrations • BMC Truesight • Microsoft System Center • Red Hat Ansible Modules • VMware vCenter and vRealize Operations Manager OpenManage Connections • IBM Tivoli Netcool/OMNIbus • IBM Tivoli Network Manager IP Edition • Micro Focus Operations Manager • Nagios Core • Nagios XI |
Ports | Front Ports • 1 x Dedicated iDRAC Direct micro-USB • 1 x USB 2.0 • 1 x VGA Internal Ports • 1 x USB 3.0 Rear Ports • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x RJ-45 • 1 x VGA (optional for liquid cooling configuration) |
