Product Details:
|
Products Status: | Stock | Type: | Rack |
---|---|---|---|
Processor Main Frequency: | 2.8GHz | Processor Type: | Intel Xeon E-2378G |
Condition: | New | Processor Type: | In Tel Xeon E-2226G |
Warranty: | 3 Years | Processors: | In Tel Xeon E-2226G |
Memory: | 64GB DDR4 | Hard Drive: | 1 TB 7200 Rpm SATA |
RAID Controller: | PERC H745 | Port: | Tianjin Guangzhou |
Features | Technical Specification | |||
Processor | 1 processor from the following: Xeon® E-2200 product family, Pentium®, Core i3®, Celeron® | |||
Memory | 4 x DDR4 DIMM slots, Supports UDIMM, up to 2666MT/s, 64GB Max. Supports registered ECC | |||
Storage controllers | Internal controllers: PERC H730P, H330, HBA330 (non-RAID) Software RAID: PERC S140 External HBAs: 12Gbps SAS HBA (non-RAID) | |||
Processor | 1 processor from the following: Xeon® E-2200 product family, Pentium®, Core i3®, Celeron® | |||
Internal boot | Boot Optimized Storage Subsystem (BOSS): 2 x M.2 240GB (RAID 1 or No RAID) or 1 x M.2 240GB (No RAID only) Internal Dual SD Module3 : 2x microSD (16GB, 32GB or 64GB) or 1x microSD (16GB, 32GB or 64GB) | |||
Drive bays | Up to 4 x 3.5 cabled SATA, SAS (optional) or SSD* Up to 4 x 3.5 or 2.5 hot-plug SATA, SAS (optional) or SSD* *available in the hot-plug configuration | |||
Power supplies | Single 250W (Bronze) or 450W (Platinum) power supply | |||
Dimensions | Form factor: Rack (1U) | |||

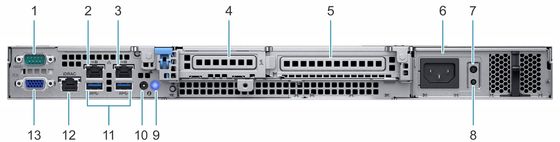

I/O & Ports | Networking Options: 2 x 1GbE LOM Network Interface Controller (NIC) ports Front ports: 1x USB 2.0, 1 x IDRAC micro USB 2.0 management port Rear ports: 2 x USB 3.0, VGA, serial connector 2 x PCIe Gen 3.0 slots: • One x8 slot low-profile, half-length with x4 slot width • One x16 slot low-profile/full-height, half-length with x8 bandwith |
