Full-Duplex Half-Duplex Communication Dell DS-6610B Connectrix SAN Switch 24-port 8-port

Full-Duplex Half-Duplex Communication Dell DS-6610B Connectrix SAN Switch 24-port 8-port
Full-Duplex Half-Duplex Communication Dell DS-6610B Connectrix SAN Switch 24-port 8-port Full-Duplex Half-Duplex Communication Dell DS-6610B Connectrix SAN Switch 24-port 8-port Full-Duplex Half-Duplex Communication Dell DS-6610B Connectrix SAN Switch 24-port 8-port Full-Duplex Half-Duplex Communication Dell DS-6610B Connectrix SAN Switch 24-port 8-port Full-Duplex Half-Duplex Communication Dell DS-6610B Connectrix SAN Switch 24-port 8-port

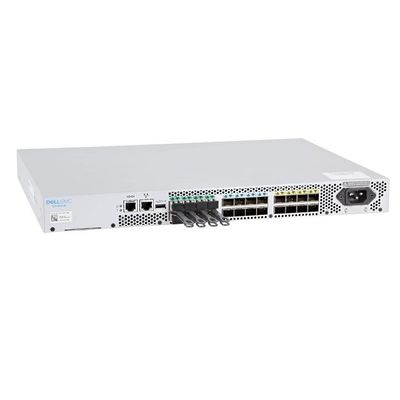

Large Image :  Full-Duplex Half-Duplex Communication Dell DS-6610B Connectrix SAN Switch 24-port 8-port

Product Details:
Place of Origin: Beijing, China, Beijing, China
Brand Name: DELL
Model Number: DS-6610B
Payment & Shipping Terms:
Minimum Order Quantity: 2 pieces
Price: $2,800.00 - $3,600.00/pieces
Packaging Details: BOX
Supply Ability: 5000 Piece/Pieces per Month
Contact Now

Full-Duplex Half-Duplex Communication Dell DS-6610B Connectrix SAN Switch 24-port 8-port

Description
Products Status: Stock Ports: 24
Function: POE, QoS, SNMP, Stackable, VLAN Support Communication Mode: Full-Duplex & Half-Duplex
Switch Capacity: 768 Gb/s Condition: New
Product Name: DELL DS-6610B Model: DS-6610B
Warranty: 3 Years Port: Tianjin Guangzhou

Details Images
DS-6610B
The DS-6610B base chassis models includes eight active 32Gb/s capable ports that are populated with eight 16Gb/s SFPs or eight 32Gb/s SFPs. The 8-port port-on-demand (PoD) models allow the switch to support additional 16 ports reaching a maximum of 24 ports. The other DS-6610B model which ends in “-EP” comes fully populated with 24 16Gb/s SFPs and includes the Enterprise Package.

Performance
32Gb/s SFPs can operate at 32, 16 or 8Gb/s; 16Gb/s SFPs will operate at 16, 8 and 4Gb/s

Frame Buffers
2K dynamically allocated

Aggregate Bandwidth
768 Gb/s

Port types
DS-6610B – F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostics Port) on 24 SFP+ ports; Access Gateway mode: F_Port andNPIV-enabled N_Port

Fabric services
BB Credit Recovery; Brocade Advanced Zoning (Default Zoning, Port/WWN Zoning, Peer Zoning); Congestion Signaling; Dynamic Path
Selection (DPS); Extended Fabrics; Fabric Performance Impact Notification (FPIN); Fabric Vision; FDMI; FICON CUP (DS-6620B only);
Flow Vision; F_Port Trunking; FSPF; Integrated Routing; ISL Trunking; Management Server; Name Server; NPIV; NTP v3; Port
Decommission/Fencing; QoS; Registered State Change Notification (RSCN); Target-Driven Zoning; Traffic Optimizer; Virtual Fabrics (Logical Switch and Logical Fabric; DS-6610B requires FOS 9.1.x and higher); VMID and AppServer. Note: Some fabric services do not apply or are unavailable in Access Gateway mode.

Full-Duplex Half-Duplex Communication Dell DS-6610B Connectrix SAN Switch 24-port 8-port 0
Full-Duplex Half-Duplex Communication Dell DS-6610B Connectrix SAN Switch 24-port 8-port 1
Product Paramenters
Model
Dell Connectrix DS-6610B
Ports
24 x 32Gb SFP+
Licensed Ports
8 x Active Ports, 8 x 16Gb Gbics Included
Power Over Ethernet (PoE)
No
Layer
N/A
Power Supplies Installed
1 x Integrated Power Supply Unit
Air Flow
Reverse Airflow - PSU to IO
Module Expansion Slots
N/A
Operating System
Fabric OS8 Installed
Licenses Installed
N/A
Management
Web or Console Management
Chassis Type
1U Rack Mountable
Rack Mounting Kit
Rack Rails Sold Separately
Additional Information
N/A
Full-Duplex Half-Duplex Communication Dell DS-6610B Connectrix SAN Switch 24-port 8-port 2
