Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch

Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch
Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch

Large Image :  Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch

Product Details:
Place of Origin: China, China
Brand Name: dell
Model Number: DS-6620B, Dell EMC DS6620B
Payment & Shipping Terms:
Minimum Order Quantity: 2 pieces
Price: $1,000.00 - $2,399.00/pieces
Packaging Details: BOX
Supply Ability: 5000 Piece/Pieces per Month
Contact Now

Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch

Description
Private Mold: NO Products Status: Stock
Function: LACP, POE, QoS, SNMP, Stackable, VLAN Support Condition: New
Transmission Rate: 10/100/1000Mbps Communication Mode: LACP, QoS, SNMP, Stackable, VLAN Support
Brand: Dell EMC MPN: MX5108n 74XDW
Warranty: 3 Years Ports: 16, 25 Gigabit Ethernet
Compatible With: MX7000 Chassis Port: Tianjin Guangzhou

Details Images
DS-6620B

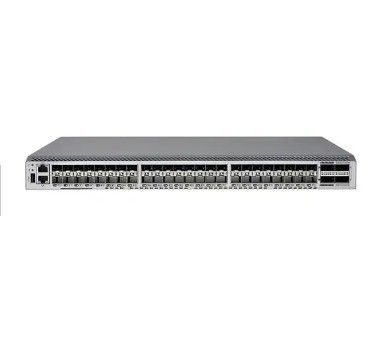

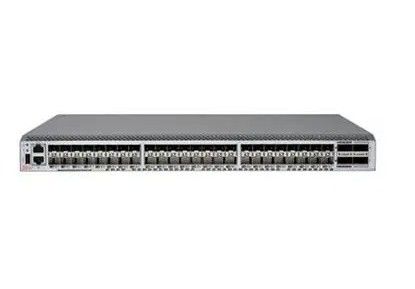

Designed to support the SAN requirements of medium-to large sized workgroups as well as that of large enterprises, the Connectrix DS-6620B offers forty-eight SFP+ ports and four QSFP ports in a 1U form factor. Two base models are available which have 24 active 32Gb/s or 16Gb/s ports, populated with 32Gb or 16Gb/s shortwave SFPs. QSFP ports can be used to form dense high performance ISLs with other 32Gb/s switches or directors. QSFPs can also be configured to add up to 16 additional ports. With its speed and port density the DS-6620B can be deployed in any Fibre Channel Storage Area Network (SAN) to enable very dense fabrics in a relatively small package.
Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch 0
Fibre Channel Ports
The DS-6620B and DS-6620B-V2 feature 48 Fibre Channel SFP+ ports and 4 QSFP ports. There are two base models which have 24 active 32Gb/s or 16Gb/s ports, populated with 32Gb or 16Gb/s shortwave SFPs. The Ports on Demand (PoD) license activates 12 additional ports and includes 12 shortwave SFPs. The QSFP Ports On Demand license activates the four QSFP ports and contains four shortwave QSFPs. The enterprise switch model fully populates the SFP+ ports with forty-eight shortwave SFPs and comes fully licensed with the Enterprise Bundle (Fabric Watch, Trunking, Performance Monitoring, Extended Fabric, Fabric Vision). Performance 32Gb/s SFPs can operate at 32, 16 or 8Gb/s; 16Gb/s SFPs will operate at 16, 8 and 4Gb/s
Frame Buffers
15,360 dynamically allocated
Hot swappable components
Dual power supplies with three embedded cooling fan FRUs, SFPs and QSFP optics. The fans are connected to the power supplies and
are not themselves replaceable.
Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch 1
Brand
Dell
Model
Dell Connectrix DS-6620B 32Gb/s Fibre Channel Switch
Ports
48 X 32Gb SFP+, 4 x QSFP
Licensed Ports
24 x Active Ports, 24 x 32Gb Gbics Included
Power Supplies Installed
2 x Hot Swap Power Supply Units
Power Over Ethernet (PoE)
No
Chassis Type
1U Rack Mountable
Rack Mounting Kit
Rack Rails Sold Separately
Operating System
Fabric OS8 Installed
Connectrix Switches available
* DS-6610B: Up to 24 ports, 32Gbps max
* DS-6620B: Up to 64 ports, 32Gbps max
* DS-6630B: Up to 128 ports, 32Gbps max
* DS-7720B: Up to 64 ports, 64Gbps max
* DS-7730B: Up to 128 ports, 64Gbps max
* MP-7810B: Up to 12 32Gbs ports and six 1/10GbE SFP+ ports
* MP-7840B: Up to 24 16Gbs port plus 16 1/10 GigE and 2 40 GigE ports
* MDS-9132T: Up to 32 ports, 32Gbps max
* MDS-9148T: Up to 48 ports, 32Gbps max
* MDS-9396T: Up to 96 ports, 32Gbps max
* MDS-9148V: Up to 48 ports, 64Gbps max
* MDS-9220i: Up to 12 32Gbps FC ports, and four 1/10, two 25 and one 40 Gigabit Ethernet IP ports
* MDS-9250i: Up to 40 FC ports, 2 x 10 GigE ports, 8 FCoE ports and 16Gbp
Product Paramenters
Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch 2
Company Profile
Beijing Zhongsheng Huijia Trading Co., Ltd was established in 2014 in Beijing. The company is mainly engaged in Dell EMC, Lenovo, HP, Inspur and Huawei, including server, workstation, storage, IT system integrator sales ,wholesale, retail and after-sales business.  Large amount yearly turnover makes us become the Platinum Partner of Dell and Lenovo . The company has more than 200 channel sales and after-sales service staff, and channels throughout Chinese mainland. Our company operates a rich product line, covering a wide range of desktops, laptops, all-in-one computers, servers, network products, storage products, software, peripherals and so on. Over the years, the company also provides a variety of information technology solutions for customers in many industries, such as government agencies, education, enterprises, finance, post and telecommunications, military, medical and other industries. the company has accumulated rich industry experience in demand analysis, technical demonstration, equipment selection, network implementation, quality assurance, operation and maintenance, service support and so on.
Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch 3
Why Choose Us
Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch 4
Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch 5

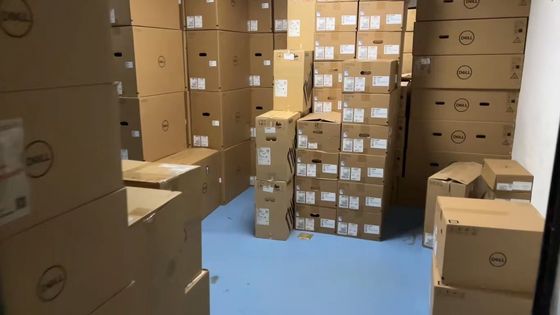

Warehouse
Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch 6
Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch 7
Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch 8
Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch 8
Transportation
Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch 10
Data Transfer with Stackable Dell EMC Connectrix DS-6620B 32Gb/s Fibre Channel Switch 11
FAQ
Q1.How about the delivery time if order ? A:We have large spot stock, generally can ship within 1-2 working days. Q2. 24-hour online service? A:Email / Mobile / Skype / Whats app all are 24 hours available since you need. Q3. Do you offer product warranty? A: Yes, our products provide 1 year warranty and long-term technical support. Q4.How about the package ? A:Carton or wooden box if need . Q5.How to pay ? A:We accept T/T, Alibaba trade assurance , Western Union and so on . Q6. Are your machines new or used ? A:All of our goods are new.
