Private Mold Dell EMC SC5020 Storage 18 *1.2TSAS 10K 1.92TSSD SAS *12 IO/16Gb FC 4 port

Private Mold Dell EMC SC5020 Storage 18 *1.2TSAS 10K 1.92TSSD SAS *12 IO/16Gb FC 4 port
Private Mold Dell EMC SC5020 Storage 18 *1.2TSAS 10K 1.92TSSD SAS *12 IO/16Gb FC 4 port Private Mold Dell EMC SC5020 Storage 18 *1.2TSAS 10K 1.92TSSD SAS *12 IO/16Gb FC 4 port Private Mold Dell EMC SC5020 Storage 18 *1.2TSAS 10K 1.92TSSD SAS *12 IO/16Gb FC 4 port Private Mold Dell EMC SC5020 Storage 18 *1.2TSAS 10K 1.92TSSD SAS *12 IO/16Gb FC 4 port Private Mold Dell EMC SC5020 Storage 18 *1.2TSAS 10K 1.92TSSD SAS *12 IO/16Gb FC 4 port Private Mold Dell EMC SC5020 Storage 18 *1.2TSAS 10K 1.92TSSD SAS *12 IO/16Gb FC 4 port

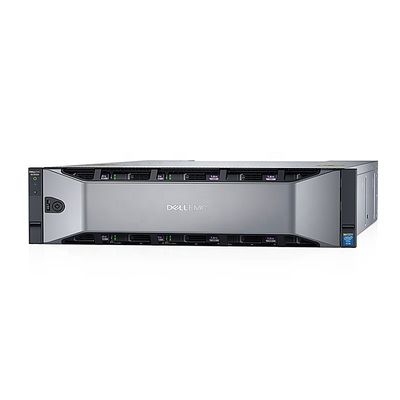

Large Image :  Private Mold Dell EMC SC5020 Storage 18 *1.2TSAS 10K 1.92TSSD SAS *12 IO/16Gb FC 4 port

Product Details:
Place of Origin: Beijing, China
Brand Name: DELL
Model Number: Dell EMC SC5020
Payment & Shipping Terms:
Price: $50,000.00/pieces 1-9 pieces
Packaging Details: BOX
Contact Now

Private Mold Dell EMC SC5020 Storage 18 *1.2TSAS 10K 1.92TSSD SAS *12 IO/16Gb FC 4 port

Description
Private Mold: Yes Products Status: Stock
Cache: 128G Supported Storage Protocols: Fibre Channel NFS ISCSI
Model: Dell EMC SC5020 Storage Port: Tianjin Guangzhou

Details Images
Private Mold Dell EMC SC5020 Storage 18 *1.2TSAS 10K 1.92TSSD SAS *12 IO/16Gb FC 4 port 0
Private Mold Dell EMC SC5020 Storage 18 *1.2TSAS 10K 1.92TSSD SAS *12 IO/16Gb FC 4 port 1
Private Mold Dell EMC SC5020 Storage 18 *1.2TSAS 10K 1.92TSSD SAS *12 IO/16Gb FC 4 port 2
Products Description

Dell SC5020

Improve performance and reduce cost. SC5020 leverages modern architecture to optimize the economic benefits of the data center while providing transformative solid state, hard disk, or hybrid storage performance, automatically saving storage costs. The SC series offers lower flash and hybrid flash effective unit GB prices *, giving companies of any size an essential technological advantage to help them compete in today's rapidly changing market. Highlights include: Data Progression-IOPS goals can be achieved with a lower-cost combination of storage media, even with changing performance requirements. Deduplication and compression-significantly reduces the raw capacity required to store data. RAID tiering-eliminates manual settings and improves efficiency and utilization. Federation-simplify multi-array environments with fast, seamless data movement and help with active load balancing through Live Migrate and Volume Advisor. ProSupport Services-use remote installation options to ensure a smooth start of the project and reduce deployment costs. Permanent software licensing-investment to meet future needs and minimize upgrade and expansion costs

New hardware platform. SC5020 has strong performance and is the next generation of the popular SC4020 array. Equipped with dual 8-core Intel processors, 4x memory and a 12-Gb SAS backend, the SC5020 achieves the following advantages. IOPS increases by up to 45% *. Up to 3x increase in bandwidth (GB/ seconds) *. Tripling the maximum capacity. The new 3U all-in-one chassis includes 30 drive bays and dual hot-swappable controllers that provide up to 460 TB of raw capacity in a compact unit. You can expand the capacity of each array to more than 2 PB* with a variety of expansion enclosures-making it possible to scale out on a larger scale in a federated multi-array system. But the advantages are not limited to fast hardware. SC5020 includes all the features of the Storage Center operating system (SCOS) to meet your expectations for SC series storage.

Give intelligent advantages to modern workloads. Based on actual usage and application performance requirements, the SC series Data Progression features dynamically optimize multiple drive tiers and RAID levels to improve performance and cost savings. By default, all new data is written to the fastest Tier 1 drive, with a performance level of RAID 10, which is then converted to an affordable RAID 5 Unix 6 (on the same hard drive) for subsequent reading. As the data storage time increases, the system moves it to lower-cost storage until it is again more active. The data will be exactly where it is needed, ensuring that IOPS remains at a high level while ensuring that cost savings are achieved.
Customer Photos
Private Mold Dell EMC SC5020 Storage 18 *1.2TSAS 10K 1.92TSSD SAS *12 IO/16Gb FC 4 port 3
Private Mold Dell EMC SC5020 Storage 18 *1.2TSAS 10K 1.92TSSD SAS *12 IO/16Gb FC 4 port 4
Private Mold Dell EMC SC5020 Storage 18 *1.2TSAS 10K 1.92TSSD SAS *12 IO/16Gb FC 4 port 5
Product Paramenters

DELL EMC SC5020

Data mobility and migration.
Copy.
Replication through other SC series array I.
Synchronous / asynchronous replication via FC or iSCSI.
Set by volume QoS bandwidth priority.
The destination / source relationship can be one to many or many to one.
Support for all SC data services on source and destination volumes.
Replication type and topology can be changed as needed.
Support for cross-platform replication using PS series / EqualLogic arrays (in either direction).

Volume mobility.
Live Migrate (equipped in basic products) supports transparent data movement among hosts between arrays; see also the "federation"
section.

Joint multi-array system.
Live Migrate (equipped in basic products) supports transparent volume movement of hosts between arrays.
Snapshots maintained / retained during migration.

Compact import.
Space-saving, non-disruptive data migration from PS series (EqualLogic) array.

Condensed clone.
Independent volumes can be cloned without replicating data.
Maintain independent snapshots and replication through clones.
Ideal for VDI, test / development, and other applications that require independent common data instances.
More efficient than deduplication for database replicas.

Data optimization.
Automatic slicing method.
Policy-based migration based on real-time data usage, customizable page size from 512 KB to 4 MB.

Automatic hierarchical structure.
A total of up to 3 primary (media-based) layers and up to 2 solid-state hard disk layers (read and write-intensive SSDs).

Hierarchical customization.
User-defined profile with the option to "pin" the volume to any layer.

RAID support.
RAID 0, 1, 5, 6, RAID 10 and RAID 10 DM (dual mirrors); each RAID level can be arbitrarily combined in a single array.

RAID layering.
Multiple RAID levels can be automatically configured and dynamically separated on the same layer; there is no need to pre-assign
RAID groups.

Streamlined configuration.
Active by default on all volumes, allowing all features to perform optimally.

Thin snapshot.
Only changes are recorded and snapshots are automatically migrated to low-cost storage.

Intelligent deduplication and compression.
Provide optional options for each volume on solid state drives and / or hard disk layers in a mixed configuration.
Compression-only options are also available in all configurations.

Hard disk optimization.
FastTrack can move more frequently accessed data to the outside track to speed up response.

Data protection.
Data protection, disaster recovery, security.

Business continuity.
Live Volume two-way automatic failover, automatic repair I.
Continuous operation, disaster recovery, disaster avoidance.
Includes three-tier site (three-tier) replication options and Live Volume managed replication I.
Zero RTO/RPO, each volume has a customizable site failover SLA.
VMware Metro Stretch Cluster support.
VMware Site Recovery Manager.

Distributed spare mode.
No need for dedicated hot backup, all drives can be used for Icano (input and output).

Thin snapshot.
Only changes are recorded and snapshots are automatically migrated to low-cost storage.

Application consistency.
Replay Manager: provides application-consistent snapshots in a Microsoft or Vmware environment.
AppSync: provides application-consistent snapshots in Microsoft, VMware, and Oracle environments.

Data encryption at rest.
Self-encrypting drive (SED) in SSD or hard disk format.
Full disk encryption (FCE) based on AES-256.
The hard drive is FIPS 140-2 level 2 certified.
Key Management Server (KMS) options for FIPS 140-2 levels 1, 2, and 3.

External key management support.
Gemalto SafeNet KeySecure k460, k250, k170v, k150v.
Thales EMS 200.
Working environment conditions Operating temperature: 50 °F-95 °F (10 °C-35 °C).
Non-operating temperature:-40 °F-149 °F (- 40 °C-65 °C).
Operating humidity range (non-condensing): 10% to 80%, maximum dew point temperature 29 °C (84.2 °F).
Non-operating humidity (non-condensing): 5% to 95%, maximum dew point temperature 33 °C (91 °F).
Receptacle type: NEMA 5-15 Universe CS22.2 Magazine n °42.

Expanded capacity.
Supported expansion enclosure.
Dell EMC SC420:24 x 2.5 "drive carrier (12 Gb SAS).
Dell EMC SC400:12 x 3.5 "drive carrier (12 Gb SAS).
Dell EMC SC460:60 x 3.5 "drive carrier (12 GB SAS).

Maximum number of hard drives.
222 per array (30 built-in plus 192 external), more I in the federated system.

Maximum original capacity.
2.16 PB (solid state or hard disk) I per array, larger in federated systems.

Maximum raw capacity (NAS).
2.16 PB per array (FS8600 NAS equipment required).
Single namespace 4 PB (requires FS8600 and multiple arrays).
Global namespace 20 PB (requires FS8600 and multiple arrays).

Storage medium.
SAS and NL-SAS hard drives; hard drives of different types, transmission rates and rotational speeds can be mixed in the same
system.
Solid state drives: write-intensive and read-intensive drives.
Hard disk: 15K, 10K, 7.2K RPM.

Function.
Array configuration.
All-flash, hybrid or hard disk array.

Storage format.
Blocks (SAN) and / or files (NAS) I in the same pool.

Maximum number of SAN hosts: 500.
Maximum number of initiator ports: 1000.
Maximum number of snapshots: 8192.
Maximum IOPS:1025000i.
Maximum IOPS (delay less than 1 millisecond): 818000i.
Maximum IOPS (80% read, 20% write): 330000i.
Maximum throughput (read): 19000 MB/si.
Maximum throughput (writes): 9500 MB/si.

Administration and Management.
Management interface.
Browser-based (HTML 5):
Unisphere for SC (element Manager).
Unisphere Central (Multi-Array Management).
CloudIQ (cloud-based analytics and monitoring).
Client application:
Dell Storage Manager (multi-array, multi-site, cross-platform management).

Joint function.
Create a large multi-array system under unified management and seamlessly migrate workloads between arrays through the
accompanying Live Migrate capabilities. Add homogeneous or heterogeneous SC arrays in a non-disruptive way to efficiently use
their combined capacity and performance. Volume Advisor monitors federated arrays to provide ideal data placement and load
balancing recommendations. Volume movement does not affect snapshot or replication data protection. I.

Script support.
Microsoft PowerShell API.
RESTful API.

Host operating system support.
Microsoft ®Windows Server ®, Oracle ®Solaris, HP ®- UX, Oracle Linux, IBM ®AIX ®, Novell ®NetWare, SLES, Apple, HPTru64, VMware ®,
Citrix ®XenServer ®and RedHat ®.

Third-party application integration.
VMware, Oracle, Microsoft, IBM, OpenStack standards, Symantec bands, Commvault ®, Veeam ®, Docker bands-see the SC series
management specification sheet for more information.

Data in-place upgrade option.
Transfer the drive from the SC4020 master unit and / or expansion enclosure to the new SC5020/SC7020.

Coexist with PS series array.
Copy in either direction.
Day-to-day management can be accomplished through a single interface.
Compact import: space-saving, non-disruptive data migration from PS series array.

Authentication.
VMware vSphere Metro Storage Cluster, VMware SRM, Veritas Storage Foundations Suite, IBM VIOS certified, Oracle validated
infrastructure (OVI); for other certifications and details, see Dell Storage support Matrix.

Report / reminder.
Support Assist (phone home), remote diagnosis and performance monitoring, automatic reminder, reporting and notification,
departmental billing.

Firmware upgrade.
Online, uninterrupted. I firmware can be set to download automatically, and if necessary, you can choose to manually trigger the
installation.

Workload management.
QoS 、 VVOL

Network and extended Ihamo.
Front-end network protocol.
FC, iSCSI, SAS (supports synchronous multiprotocol).

Up to 32 Gb FC port.
8 per array (SFP+).

Up to 16 Gb FC port.
8 per array (SFP+).

Up to 100 Gb iSCSI port.
8 per array (QSFP28).

Maximum number of 25 Gb iSCSI port.
8 per array (SFP28).

Up to 10 Gb iSCSI port.
16 per array (SFP+ or BaseT).

Up to 12 Gb SAS port.
8 x 12 Gb SAS ports I.

Management Port.
2 per array (1 Gb BASE-T).

Back-end extension protocol.
12 Gb SAS.

Maximum number of backend expansion ports.
8 per array.
Up to 16 expansion enclosures per array.

Physics.
Rack size: 3U.
Height: 13.33 cm (5.25 inches).
Width: 44.5 cm (17.52 inches).
Depth: 78.5 cm (30.9 inches).
Weight (maximum configuration): 24.22 kg (53.4 lb).
Weight (empty): 15.15 kg (33.4 lb).

Power option I.
Power / power consumption: 2 hot-swappable power supplies (1378 W or 1485 W option).
Maximum output power: 1378 W power option: 1378 W power supply option: 1485 W.
Maximum input power: 1378 W Power option: 1584 W position 1485 W Power option: 1688 W.
Maximum input current: 1378 W Power option: 16 A * * 1485 W Power option: 8.8A.
Maximum surge current: 55 A, lasting 10 milliseconds or less.
Rated input voltage operating range: 1378 W Power option: 1378-240W Power option: 200240VAC.
Rated input frequency: 50 amp 60 Hz.
Maximum heat output / heat dissipation: 1378 W option: 5770 BTU;1485 W per hour option: 5760 BTU per hour (for integrated
infrastructure without expansion enclosure)
