Product Details:
|
Private Mold: | NO | Products Status: | Stock |
---|---|---|---|
Type: | Rack, Rack | Processor Type: | Xeon, Intel Xeon |
Condition: | New | Memory: | 8GB |
Weight: | 30.1kg | Form Factor: | 1U |
Processor Main Frequency: | 2.8Ghz | Port: | Tianjin Guangzhou |

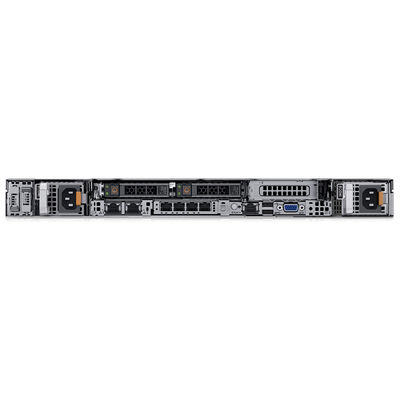

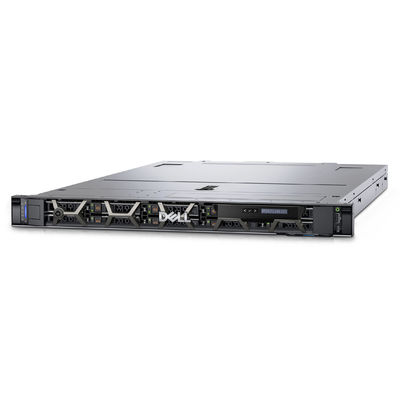

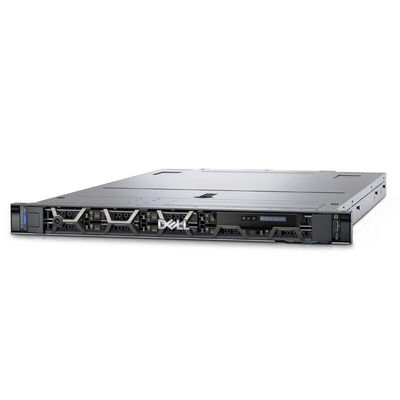

Model | Dell EMC PowerEdge R660 | |
Processor Name | Up to two 4th Generation Intel Xeon Scalable processors, with up to 56 cores and optional Intel® QuickAssist Technology | |
Memory | 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only | |
Storage controllers | Internal Controllers (RAID): PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB • External HBAs (non-RAID): HBA355e • Software RAID: S160 | |

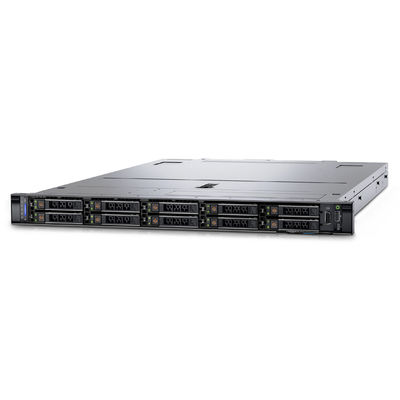

Drive Bays | Front bays: Up to 10 x 2.5-inch, SAS/SATA/NVMe (HDD/SSD) max 153.6 TB • Up to 8 x 2.5-inch, SAS/SATA/NVMe, (HDD/SSD) max 122.88 TB • Up to 14 x E3.S (Gen5 x NVMe) max 179.2 TB • Up to 16 x E3.S, (Gen5 x NVMe) max 204.8 TB Rear bays: • Up to 2 x 2.5-inch, SAS/SATA/NVMe, max 30.72 TB • Up to 2 x E3.S (Gen5 x NVMe), max 25.6 TB | |
Power Supplies | 1800W Titanium 200—240 VAC or 240 HVDC, hot swap with full redundant • 1400W Platinum 100—240 VAC or 240 HVDC, hot swap with full redundant • 1100W Titanium 100—240 VAC or 240 HVDC, hot swap with full redundant • 1100W LVDC -48 — -60 VDC, hot swap with full redundancy • 800W Platinum 100—240 VAC or 240 HVDC, hot swap with full redundant • 700 W Titanium 200—240 VAC or 240 HVDC, hot swap with full redundant | |
Dimensions | • Height – 42.8 mm (1.68 inches) • Width – 482 mm (18.97 inches) • Depth – 822.88 mm (32.39 inches) with bezel 809.04 mm (31.85 inches) without bezel | |
GPU support | Up to 3 x 75 W SW |
