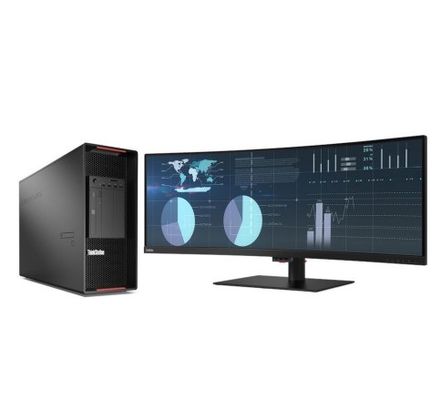

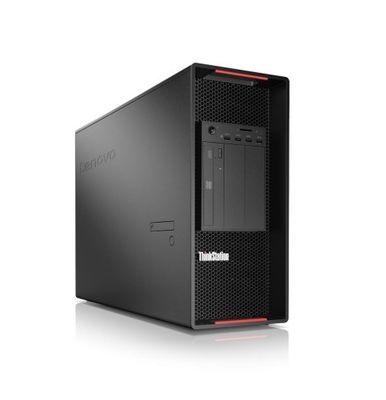

Form Factor Tower (55L) Dimensions (WxDxH)
200 x 620 x 446 mm (7.87 x 24.4 x 17.56 inches, with feet)
Weight
37 kg (81.6 lbs, maximum configuration)
Bays
• 2x 3.5" disk bay (standard)
• 4x 3.5" disk bay (optional):
2 bays come with 3rd disk or Storage Bay Upgrade Kit
2 bays via flex bay

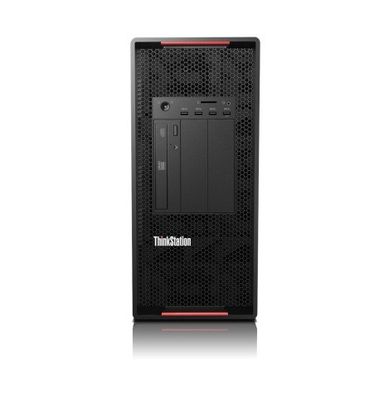

Flex Bays
3x flex bay, supports the following:
• 3x half-height optical drives
• 2x 5.25" 9.0mm optical drives
• 1x 5.25" 9.0mm optical drive + 1x 3.5"/2.5" SATA SSD/HDD
• 1x 3.5"/2.5" SATA SSD/HDD with Front Access Storage Enclosure
• 1x flex module for the following options:
Tray 1: 9.0mm optical
Tray 2: 15-in-1 USB 3.2 Gen 1 reader or 2x Thunderbolt™
Port 1 and 2: Front USB 3.2 Gen 1 Type-C or eSATA
M.2 Slots
Up to 9x M.2 SSD:
• 2 via onboard slots
• 4 via Quad M.2 to PCIe adapter
• 3 via Single M.2 to PCIe adapter

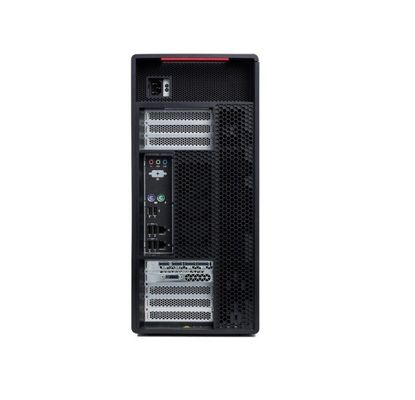

Expansion Slots
• Three PCIe 3.0 x4
• Five PCIe 3.0 x16 (2nd CPU needed)
Expansion Slots Offering
Slot 1 (CPU1) PCIe 3.0 x16, full height, full length, 75W, double-width, by CPU1
Slot 2 (CPU1) PCIe 3.0 x4, full height, full length, 25W, open ended, by CPU1
Slot 3 (CPU1) PCIe 3.0 x16, full height, full length, 75W, double-width, by CPU1
Slot 4 (CPU1) PCIe 3.0 x4, full height, full length, 25W, open ended, by CPU1
Slot 5 (PCH) PCIe 3.0 x4, full height, half length, 25W, open ended, by PCH
Slot 6 (CPU2) PCIe 3.0 x16, full height, half length, 75W, by CPU2
Slot 7 (CPU2) PCIe 3.0 x16, full height, full length, 75W, double-width, by CPU2
Slot 8 (CPU2) PCIe 3.0 x16, full height, full length, 75W, by CPU2
