Maximize Your Workflow with Dell P5820X Tower Workstation and Core i9-10900X/32G/512G

Item

Value

Processor
Options

Xeon® Processor W-2000 Family and Core X Series CPUs with up to 18 cores and Advanced Vector Extensions,Trusted Execution
Technology, AES New instructions, Optimized Turbo Boost and optional vPro™ technology
(Xeon W CPUs only) (Important Note: Features and Supported Configurations will differ between 5820 Tower Workstations with Xeon® W
Processors and 5820 Tower Workstations with Core™ X Processors

Memory

Four channel memory up to 512GB 2666MHz and up to 256GB 2933MHz DDR4 (RDIMM) ECC memory.
(Up to 256GB 2666MHz DDR4 (UDIMM) Non-ECC memory) 8 DIMM slots.
Note: Memory speed is dependent on specific Xeon or Core X Processor installed.

Graphics
Options1

Support for 2 PCI Express® x16 Gen 3 graphics card - up to 600W with maximum of up to 2 x 300W double width graphics cards.
Not all graphics card offerings are available with Core X I9 and I7 Series CPUs
High end 3D cards:
Radeon™ Pro WX 9100
Radeon™ Pro SSG
Quadro GV100
Quadro P6000
Quadro P5000
Quadro RTX 8000
Quadro RTX 6000
RTX 5000
Mid-range 3D cards:
Radeon™ Pro WX 7100
Radeon™ Pro WX 5100
Radeon™ Pro WX 4100
Quadro P4000
Quadro P2000
Quadro P2200
Quadro RTX 4000
Entry 3D cards:
Radeon™ Pro WX 3200
Radeon™ Pro WX 2100
Quadro P1000
Quadro P620
Quadro P400
Professional 2D cards:
NVS 310

Storage
Options

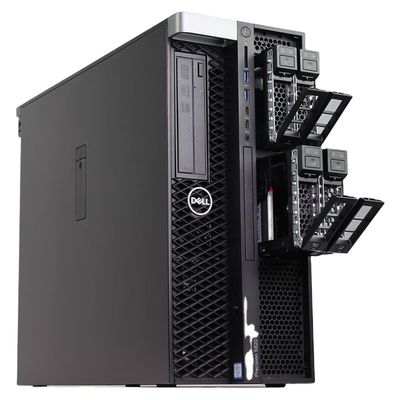

Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 6 x 2.5” and 5 x 3.5” drives with 5.25” bay
populated.
Up to 2 front accessible (hot plug) M.2/U.2 NVMe PCIe SSDs are supported in FlexBay 1 on enabled PCIe backplane chassis with
integrated Intel controller
and up to 4 with MegaRAID 9460* NVMe hardware RAID controller option - see controller section

I/O Ports

Front
2 – USB 3.1 Gen 1 Type A
2 – USB 3.1 Gen 1 Type C
1 – Universal Headphone Jack
Internal
1 – USB 2.0 Type A
1 – 2 x 5 USB 2.0 header. (requires 3rd party splitter
cable to support 2 x USB 2.0 Type A ports)
6 – SATA @6Gb/s plus 2 for optical

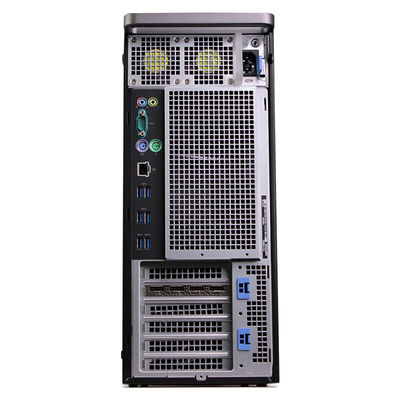

Rear
6 – USB 3.1 Gen 1 Type A
(6th port supports Power Delivery)
1 – Serial
1 – RJ45 Network
2 – PS2
1 – Audio Line out
1 – Audio Line in/Microphone

Chassis

HxWxD: 16.45” (417.9 mm) | Width: 6.95”
(176.5 mm) | Depth: 20.4” (518.2 mm) |
Starting at weight 34lb/15.4kg
Bays: (2) FlexBays can support up to 2x 3.25” or
2.5” drives each and (1) 5.25” HDD/SSD drives as
factory option or customer kit.
(1) Slimline optical bay; (1) SD slot UHS ll Class 3
with read only support (SW enabled)
Available PCIe backplane FlexBay chassis
supporting 1 - 4 x M.2/U.2 PCIe NVMe SSDs.
Slots: All slots PCIe Gen 3: (2) PCIe x16, (1) PCIe
x16 wired as x8, (1) PCie x16 wired as x4, (1) PCIe
x16 wired as x1, 1 PCI 32/33
Power Supply: 425W* or 950W (input voltage
100VAC - 240VAC) –90% efficient (80PLUS Gold
Certified) Externally accessible/removable/lockable
