Product Details:
|
Private Mold: | NO | Products Status: | Stock |
---|---|---|---|
Type: | Rack | Processor Main Frequency: | 2.1GHz |
Processor Type: | Intel Xeon Silver 4310 | Product Name: | PowerEdge R750 Rack Server |
Processor: | Intel Xeon Silver 4310 | Memory: | 32 GB |
Hard Drive: | 1.2TB | Warranty: | 3 Years |
Status: | In Stock | Power Supply: | 800W |
Lead Time: | 1-2 Days | Dimensions: | 86.8*482*758.3mm |
RAID Controller: | H345 |

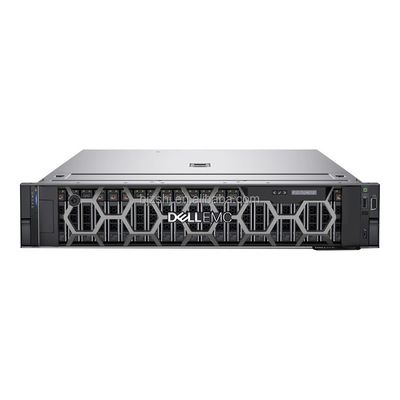

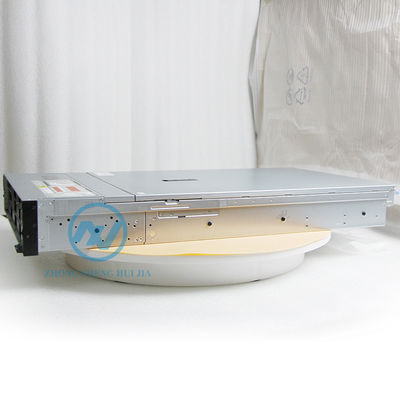

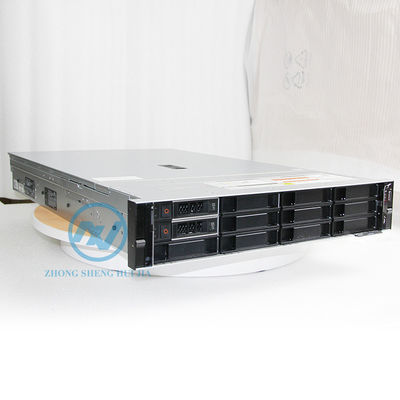

Product Name | Dell PowerEdge R750 Rack Server |
Processor | Intel Xeon Silver 4310 |
Processor Speed | 2.1GHz |
Raid Controller | H345 |
Form Factor | 2U |
Memory | 32GB |
Hard Drive | 1.2TB |
Dimensions | 86.8*482*758.3mm |
Power Supply | 800W |
Warranty | 3 years |
Conditions | Brand New |
Lead Time | 1-2 days |
Status | In stock |
Features | Technical Specifications |
Processor | Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor |
Memory | • 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s • Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max • Supports registered ECC DDR4 DIMMs only |
Storage Controllers | • Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB • Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB • External PERC (RAID): PERC H840, HBA355E |
Drive bays | Front bays: • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
Power Supplies | • 700 W Titanium HLAC/240 mixed mode • 800 W Platinum AC/240 mixed mode • 1100 W Titanium AC/240 mixed mode • 1100 W DC -48 - -60V • 1400 W Platinum AC/240 mixed mode • 1800 W Titanium HLAC/240 mixed mode • 2400 W Platinum AC/240 mixed mode • 2800 W Titanium HLAC/240 mixed mode |
Dimension | • Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 758.3 mm (29.85 inches) - without bezel 772.14 mm (30.39 inches) - with bezel |
Form Factor | 2U rack server |
Embedded Management | • iDRAC9 • iDRAC Service Module • iDRAC Direct • Quick Sync 2 wireless module |
Bezel | Optional LCD bezel or security bezel |
Integrations and Connections | OpenManage Integrations • BMC Truesight • Microsoft System Center • Red Hat Ansible Modules • VMware vCenter and vRealize Operations Manager OpenManage Connections • IBM Tivoli Netcool/OMNIbus • IBM Tivoli Network Manager IP Edition • Micro Focus Operations Manager • Nagios Core • Nagios XI |
Ports | Front Ports • 1 x Dedicated iDRAC Direct micro-USB • 1 x USB 2.0 • 1 x VGA Internal Ports • 1 x USB 3.0 Rear Ports • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x RJ-45 • 1 x VGA (optional for liquid cooling configuration) |
