Dell Storage MD1420 600GSAS 2.5 15K*10 Advanced Storage Solution 8.6A at 100V

Dell Storage MD1420 600GSAS 2.5 15K*10 Advanced Storage Solution 8.6A at 100V
Dell Storage MD1420 600GSAS 2.5 15K*10 Advanced Storage Solution 8.6A at 100V Dell Storage MD1420 600GSAS 2.5 15K*10 Advanced Storage Solution 8.6A at 100V Dell Storage MD1420 600GSAS 2.5 15K*10 Advanced Storage Solution 8.6A at 100V Dell Storage MD1420 600GSAS 2.5 15K*10 Advanced Storage Solution 8.6A at 100V Dell Storage MD1420 600GSAS 2.5 15K*10 Advanced Storage Solution 8.6A at 100V Dell Storage MD1420 600GSAS 2.5 15K*10 Advanced Storage Solution 8.6A at 100V

Large Image :  Dell Storage MD1420 600GSAS 2.5 15K*10 Advanced Storage Solution 8.6A at 100V

Product Details:
Place of Origin: China, Beijing, China
Brand Name: DELL
Model Number: MD1420
Payment & Shipping Terms:
Price: $1,999.00 - $3,999.00/pieces
Contact Now

Dell Storage MD1420 600GSAS 2.5 15K*10 Advanced Storage Solution 8.6A at 100V

Description
Private Mold: NO, NO Products Status: Stock, Stock
Interface Type: ESATA, Port RJ-45, Usb, SAS Drive Performance: 2.5" SAS SSD
Warranty: 3 Year Weight: 24.2 Kg
EMM: 2 EMM Provide Redundant Enclosure Management Capability Amperage: 8.6A At 100V, 4.3A At 240V
Frequency Range: 50/60Hz

Details Images

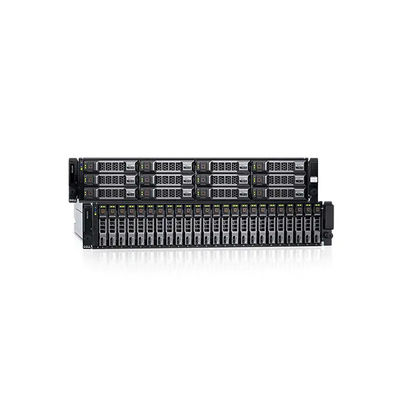

PowerVault MD1400 and MD1420
PowerVault MD1400 and MD1420 Direct-Attached Storage (DAS) enclosures with 12Gb SAS throughput have been specifically engineered
to work with the 13th and 14th generation of PowerEdge servers using the newest line of PowerEdge RAID Controller (PERC H830/H840)
and 12Gb SAS cards. Scaling capacity behind innovative next-generation servers enables end-to-end 12Gb solutions with exceptional
storage flexibility and IO performance for such applications as: High-performance databases
- Streaming digital media
- Storage-intensive applications

With twice the data throughput as previous generation enclosures and flexibility to mix and match NL-SAS, SAS and SSD drives, the
MD1400 and MD1420 offer you a wide variety of options that can fit your exact specifications. From the high-density MD1400 with up
to 12 x 10TB 12Gb HDDs to the performance –optimized MD1420 with up to 24 x 12Gb 2.5" SSDs, whatever configuration you choose
provides a viable storage solution for your particular workload.
Directly connect up to eight MD enclosures behind your PowerEdge server using a 12Gb SAS host bus adapter (HBA) or the PERC
H830/H840 card. Provide up to 960TB maximum capacity (eight MD1400 enclosures, each with 12 x 10TB 7200 rpm 3.5" SAS HDDs) or up
to 192 high-speed SSDs (eight MD1420 enclosures, each with 24 x 12Gb SAS 2.5" SSDs) for each server.
Dell Storage MD1420 600GSAS 2.5 15K*10 Advanced Storage Solution 8.6A at 100V 0
PowerVault MD1400 Direct-Attached Storage
High-density direct-attached storage (DAS) designed to work with the latest generation of PowerEdge servers. Offers exceptional
storage flexibility and IO performance and includes support for:
* Up to 12 x 12Gb HDDs or SSDs
* Up to 960TB maximum capacity with eight MD1400 enclosures (each with 12 x 10TB 7200 rpm 3.5" SAS HDDs) per server
Dell Storage MD1420 600GSAS 2.5 15K*10 Advanced Storage Solution 8.6A at 100V 1
Products Description
Feature
MD1400
Drives
Up to 12 hot-pluggable 3.5” or 2.5” drives (2.5” available with adapter)
Drive performance and
capacities
3.5” NL-SAS 6Gb/12Gb HDD (7.2K): 1TB, 2TB, 4TB
3.5” NL-SAS 12Gb HDD (7.2K): 6TB, 8TB, 10TB
2.5” SAS 12Gb HDD (7.2K): 500GB
2.5” SAS 12Gb HDD (10K): 300GB, 600GB, 1.2TB, 1.8TB
2.5” NL-SAS 12Gb HDD (7.2K): 2TB
2.5” SAS 12Gb SED (15K): 600GB
2.5” SAS 12Gb HDD (15K): 300GB, 600GB
2.5” SAS 12Gb SSD: 200GB, 400GB, 800GB (WI);
200GB, 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI)
Maximum capacity per enclosure
Up to 120TB when using 12 x 10TB NL-SAS 3.5” HDDs
Expansion capabilities
PERC H830 HBA enables expansion to 8 enclosures, PCIe 3.0, 12Gbps SAS, dual-port,
4 ports per enclosure
Unified mode
Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H830
(4 enclosures per port, single path)
Unified mode (recommended redundant path) for daisy chaining up to 4 enclosures per
PERC H830 (4 enclosures connected to both ports via redundant path cabling)
EMM
2 EMM provide redundant enclosure management capability
RAID levels
0, 1, 5, 6, 10, 50, 60
Connectivity
4 mini-SAS HD connector for connection to the host or expansion
Service management
USB mini-B connector (for factory use only)
Wattage – AC and DC power
AC – 600W; DC – 700W
Host heat dissipation
AC – 2047BTU/hr; DC – 2388BTU/hr
Input voltage range
100-240V AC, auto-sensing; 48V DC
Frequency range
50/60Hz
Amperage
8.6A at 100V, 4.3A at 240V
Supported continuous
consumption
Up to 1.2A at +5V
Up to 0.5A at +12V
Rack support
Dell ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or
unthreaded round holes or tooled  mounting in 4-post threaded-hole racks
Height x width x depth
8.7 cm (3.39”) x 48.2 cm (18.8”) x 54.1 cm (29.1”)
Altitude
Operating: -16 to 3048 m (-50 to 10,000 ft)
Storage: -16 to 10,600 m (-50 to 35,000 ft)
