PCIe 3.0 x16 Internal Broadcom 57412 10Gb SFP Network Card for Speed Networks

PCIe 3.0 x16 Internal Broadcom 57412 10Gb SFP Network Card for Speed Networks
PCIe 3.0 x16 Internal Broadcom 57412 10Gb SFP Network Card for Speed Networks PCIe 3.0 x16 Internal Broadcom 57412 10Gb SFP Network Card for Speed Networks PCIe 3.0 x16 Internal Broadcom 57412 10Gb SFP Network Card for Speed Networks PCIe 3.0 x16 Internal Broadcom 57412 10Gb SFP Network Card for Speed Networks PCIe 3.0 x16 Internal Broadcom 57412 10Gb SFP Network Card for Speed Networks PCIe 3.0 x16 Internal Broadcom 57412 10Gb SFP Network Card for Speed Networks

Large Image :  PCIe 3.0 x16 Internal Broadcom 57412 10Gb SFP Network Card for Speed Networks

Product Details:
Place of Origin: Fujian, China
Brand Name: DELL/Broadcom
Model Number: Broadcom 57412
Payment & Shipping Terms:
Price: $260.00/pieces 1-9 pieces
Packaging Details: BOX
Contact Now

PCIe 3.0 x16 Internal Broadcom 57412 10Gb SFP Network Card for Speed Networks

Description
Private Mold: Yes Products Status: Stock
Application: Server Type: Wired
Kind: Internal Transmission Rate: 25Gbps
Interface Type: PCIe Port: 2 Ports
Name: Broadcom 57412 Speed & Slot Width: PCIe 3.0 X16
Port: Tianjin Guangzhou

Details Images

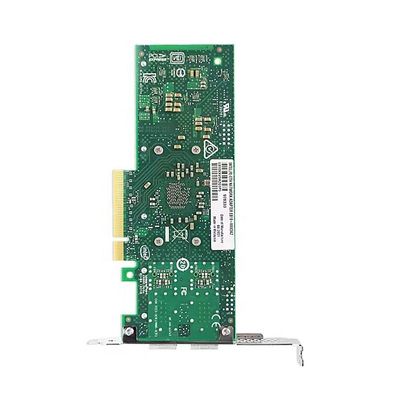

PCIe 3.0 x16 Internal Broadcom 57412 10Gb SFP Network Card for Speed Networks 0

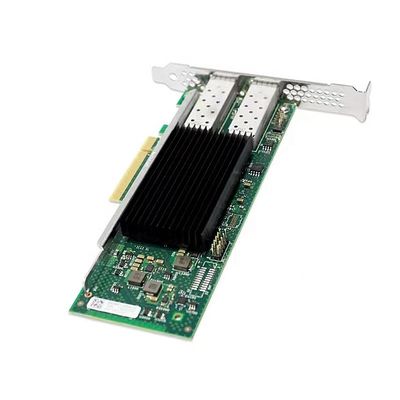

PCIe 3.0 x16 Internal Broadcom 57412 10Gb SFP Network Card for Speed Networks 1

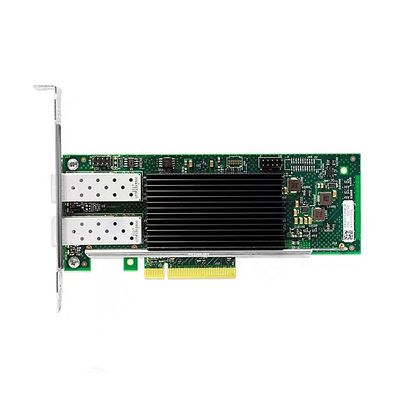

PCIe 3.0 x16 Internal Broadcom 57412 10Gb SFP Network Card for Speed Networks 2

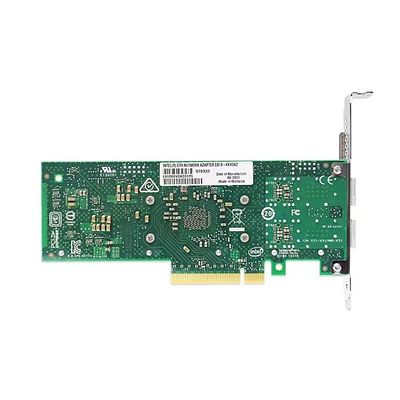

PCIe 3.0 x16 Internal Broadcom 57412 10Gb SFP Network Card for Speed Networks 3
Products Description

Intel® Ethernet Network Adapter E810-XXV

Key Features • Quad Port SFP28 for 25/10GbE • Onboard high-precision oscillator • IEEE 1588 Precision Time Protocol (PTP) • Optional GNSS mezzanine • Synchronous Ethernet (SyncE) • SMA, SMB, and U.FL connectors
Increasing growth in 5G RAN and edge deployments is driving demand for high-precision timing synchronization across the network. Meet these challenging requirements head-on with a standards-based PCIe adapter that provides greater flexibility at a lower price point than single-purpose timing appliances. Most 5G RAN deployments use 1588 PTP, SyncE, or both to ensure required timing synchronization. Both of these synchronization methods are supported by the E810-XXVDA4T, while additional hardware enhancements ensure reliability and accuracy, and provide greater flexibility and simplicity for timing synchronization deployments.

Support for synchronization Synchronous Ethernet (SyncE) delivers frequency synchronization over Ethernet between SyncE-enabled devices. Extends traditional telecom timing architecture to commercial-off-the-shelf (COTS) Ethernet solutions. IEEE 1588 PTP enables synchronization of systems on a network through the transfer of timing data (including frequency, phase, and time of day) with hardware timestamping in PTP packets. Onboard high-precision oscillator maintains high accuracy during holdover (when the synchronization source is not available), providing up to four hours with less than +/- 1.5 microsecond of phase error. Hardware features for deployment flexibility Optional GNSS mezzanine enables integrated support for frequency, phase, and time-of-day synchronization with Global Navigation Satellite Systems, including GPS, Galileo, GLONASS, BeiDou, and QZSS. Available on E810XXVDA4TGG1 only. Subminiature version B (SMB) coaxial connector allows connection to an external active GNSS antenna. Dual external SubMiniature version A (SMA) coaxial connectors allow connection to external 1PPS timing sources, such as GNSS signaling, devices and to timing recipients, enabling the network adapter to act as a grandmaster and as a timing source for other equipment. The output capability provides a way to audit the phase accuracy of each node. U.FL connectors, embedded coaxial connectors, allow 1PPS signal connectivity between the adapter and motherboard or another adapter. Dedicated send and receive U.FL ports are embedded on the adapter. E810-XXVDA4T Product Brief Intel® Ethernet 800 Series Network Adapters Flexible Configurations Intel® Ethernet Optics, and specification-compliant Active Optical Cables and Direct Attach Cables, can support multiple configurations.
Installation Instructions

Title goes here.

Adapter Features
Data Rate Supported
25/10/1GbE per port
Bus Type/Bus Width
PCIe 4.0 x16
Hardware Certifications
FCC A, UL, CE, VCCI, BSMI, CTICK, KCC
RoHS-compliant
Product is compliant with EU RoHS Directive 2
2011/65/EU (Directive 2011/65/EU) and its
amendments (e.g. 2015/863/EU)
Connectivity
Four SFP28 ports
SubMiniature version A
(SMA) connectors
Two coaxial connectors, each capable of being
configured as a 1PPS (one pulse per second) input
or output
SubMiniature version B
(SMB) connector
Coaxial connector for connecting to an external
active GNSS antenna
Controller
Intel® Ethernet Controller E810-CAM1
Bracket
Full height
Dimension
6.58 in x 4.37 in (167 mm x 111 mm)
(Full-height, half-length)
Supported Physical Layer Interfaces
25Gbps
10Gbps
DACs
25GBASE-CR
(802.3by 25Gb Twinax)
SFP+ Twinax
Optics and AOCs
25GBASE-SR
25GBASE-LR
10GBASE-SR
10GBASE-LR
Product Order Code
Configuration
Product Code
Quad Port with GNSS mezzanine
E810XXVDA4TGG1
Quad Port without GNSS mezzanine
E810XXVDA4TG1
Power Consumption
DACs
Typical Power
Max Power
25GbE Max
19.3 W
24.9 W
Idle (no traffic)
18.3 W
22.9 W
Optics (Class 2)
25GbE Max
21.5 W
31 W
Idle (no traffic)
20.4 W
29.2 W
Optics (Class 3)
25GbE Max
22.8 W
33.3 W
Idle (no traffic)
21.6 W
31.5 W
Linux Utilities
ptp4l
Allows synchronization of two Intel® Ethernet Network
Adapters E810-XXVDA4T over 1588 PTP.
phc2sys
Enables synchronization between host time and adapter time.
ts2phc
Allows 1pps signal (from a GPS, for example) to regulate the clock
in ptp4l; has the option to read GPS time of day from a serial port.
pmc
A management command for PTP that allows the extraction of
statistics and other data.
synce4l
A new utility developed by Intel that provides ITU-T G.8264 ESMC
support to communicate the pedigree of clocks in a SyncE network.
Technical Specifications
Airflow*
Extended Temp 2 W Optics*
400 LFM at 45 °C Ambient
700 LFM at 55 °C Ambient
850 LFM at 61 °C Ambient
1100 LFM at 65 °C Ambient
Commercial Temp 1.5 W Optics*
550 LFM at 45 °C Ambient
1150 LFM at 55 °C Ambient
N/A
N/A
Direct Attach Cables
150 LFM at 45 °C Ambient
250 LFM at 55 °C Ambient
300 LFM at 61 °C Ambient
450 LFM at 65 °C Ambient
Storage Humidity
Maximum: 90% non-condensing relative humidity at 35 °C
Storage Temperature
-40 °C to 70 °C (-40 °F to 158 °F)
Operating Temperature
0 °C to 65 °C (32 °F to 149 °F)
LED Indicators
ACTIVITY (blinking) NO ACTIVITY (off) LINK SPEED (green = 25GbE; amber = less than 25GbE; off = no link)
*Testing performed in a closed-loop wind tunnel at the temperatures listed in table. Max operating ambient temperature 65 °C.
Non-operating ambient temperature range:
-40 °C to +70 °C. Max case temp for Optics is 85 °C.
Customer Photos

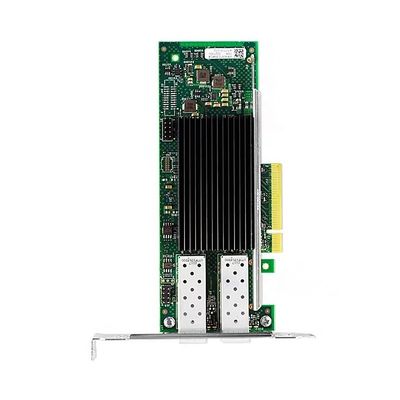

PCIe 3.0 x16 Internal Broadcom 57412 10Gb SFP Network Card for Speed Networks 4

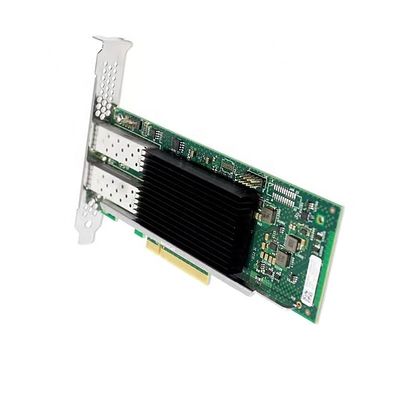

PCIe 3.0 x16 Internal Broadcom 57412 10Gb SFP Network Card for Speed Networks 5
PCIe 3.0 x16 Internal Broadcom 57412 10Gb SFP Network Card for Speed Networks 6
